JXH One-Dual-Two AI Cutting Machine — Product Introduction

Machine Overview

Configuration:

AI Reading & Nesting System

Intelligent Solid Wood Cutting Machine (L/R)

Coupling Distribution Control

Machine Introduction：

• This machine is primarily developed for the intelligent cutting of solid wood lumber (including softwoods, hardwoods, and mixed hardwoods).

  It can process rough-sawn lumber with bark edges (thickness variation less than 10mm) within suitable length and width ranges.

• Mainly suitable for processing irregular rough blanks and lumber with bark edges.

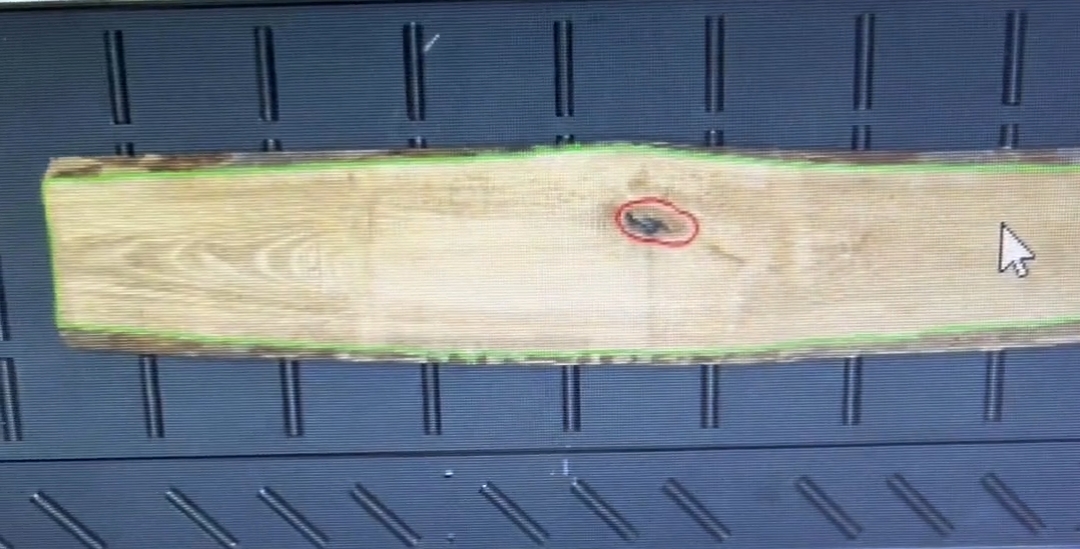

• The machine can automatically recognize defects like bark, knots, and cracks, and also allows for manual marking of areas to avoid.

• The machine automatically identifies irregularly shaped boards and performs automated nesting to maximize material utilization.

• Supports prioritized processing of products.

• Allows pre-setting of the total number of products to be processed and displays the real-time completed count.

• Near-fully automatic intelligent processing with simple operation.

• Generates a processing report after completing a rough board.

• Patented product, unique in the domestic market.

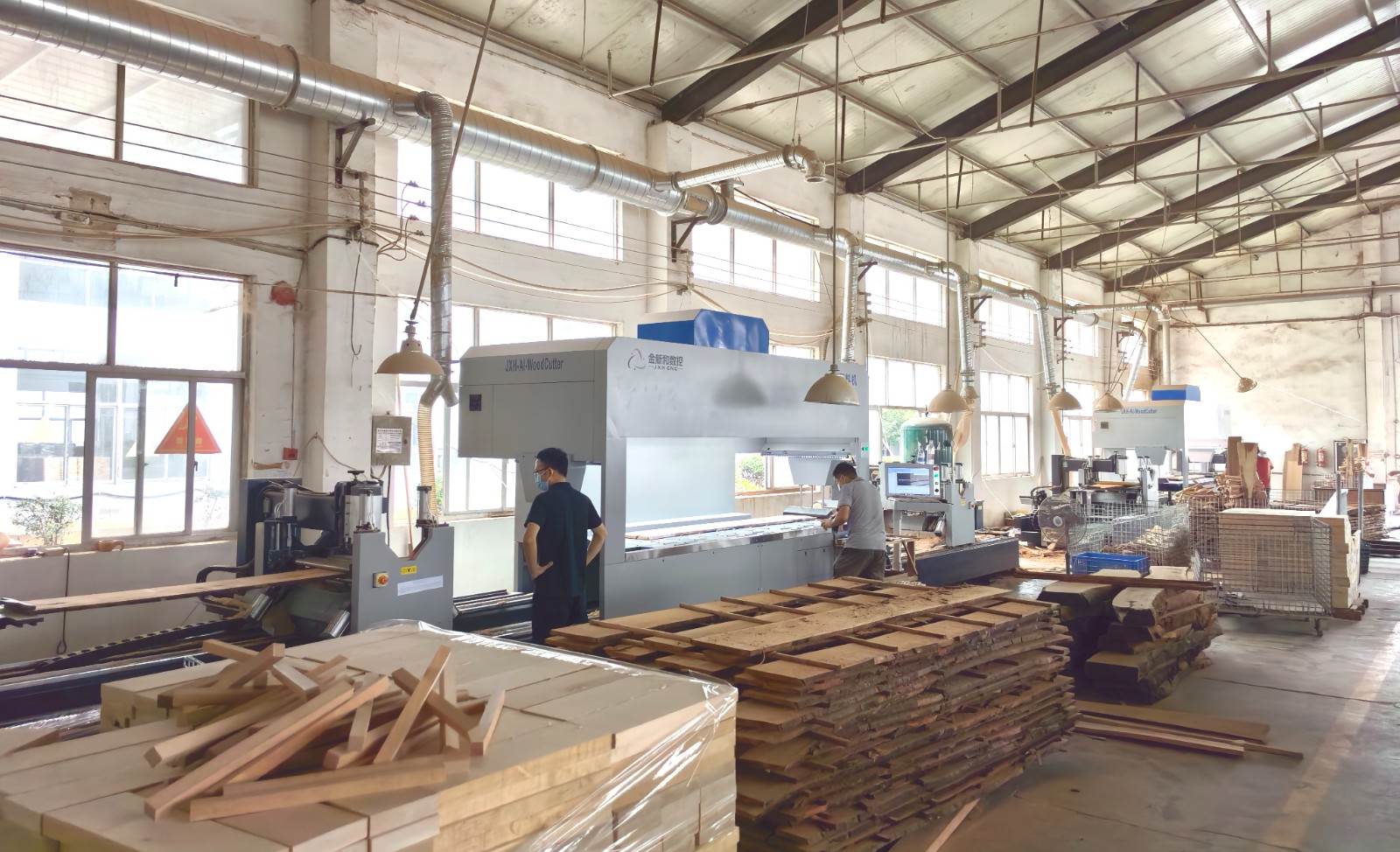

       Furniture factory – customer site

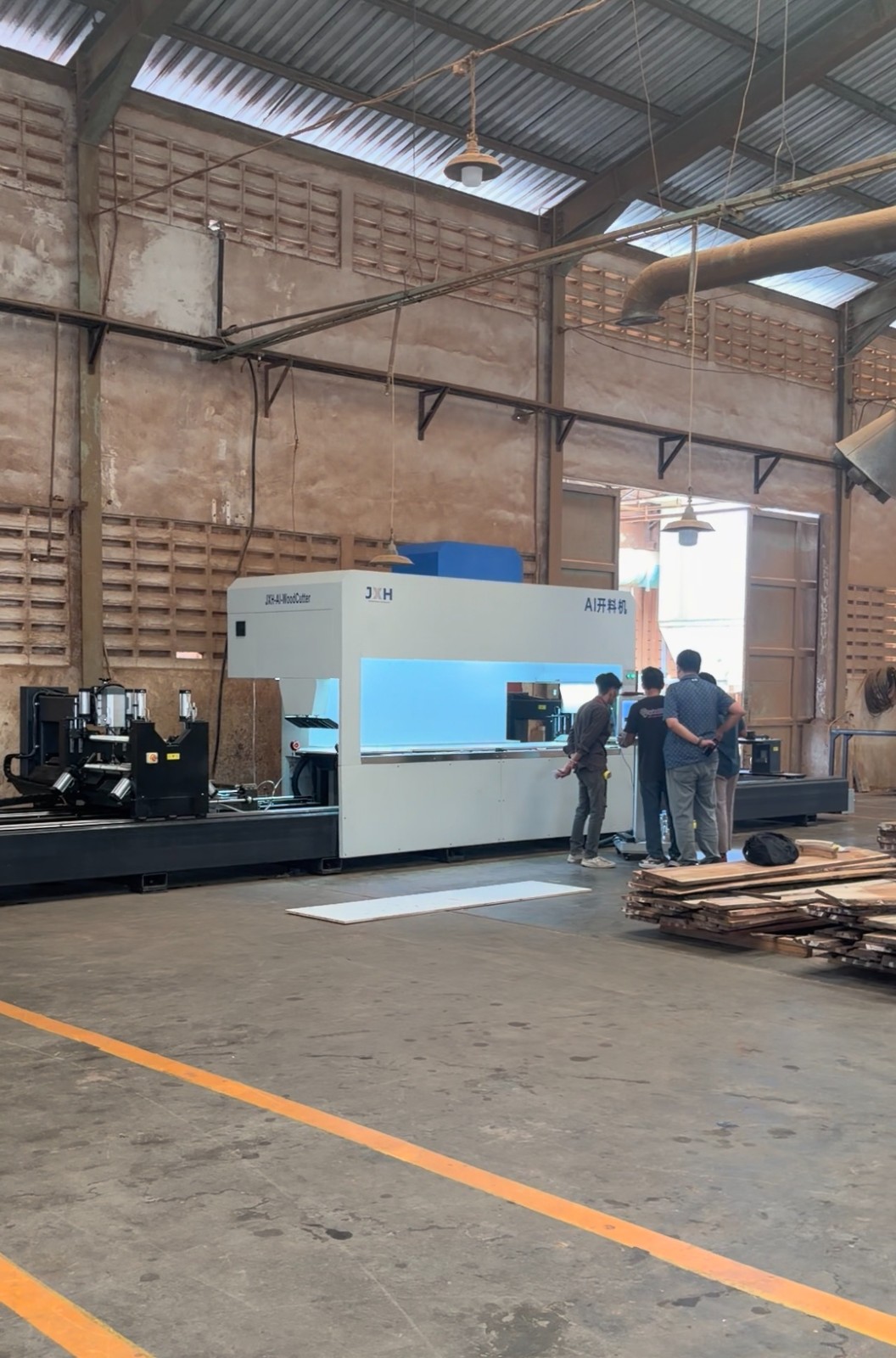

                                                                               Kitchen Utensils factory – customer site

• This production line consists of one AI Reading & Nesting System and two Intelligent Cutting Machines. It leverages the sufficient capacity of the

       AI system matched with two cutting machines, improving equipment utilization while reducing space, labor, and investment requirements.

• The standard AI Solid Wood Cutting Machine is already a mature machine with multiple users in industries like toys, furniture, and tableware.

       This line can be viewed as the coupling of two standard cutting machines. Key features:

• Doubled capacity compared to a standard single machine.

• Requires only 1 operator.

• Maximum workpiece processing length of 3 meters.

• High cost-performance ratio.

• Includes an additional coupling control system.

• The line is equipped with a maximum area optimization nesting software.

• Includes a production line management software module.

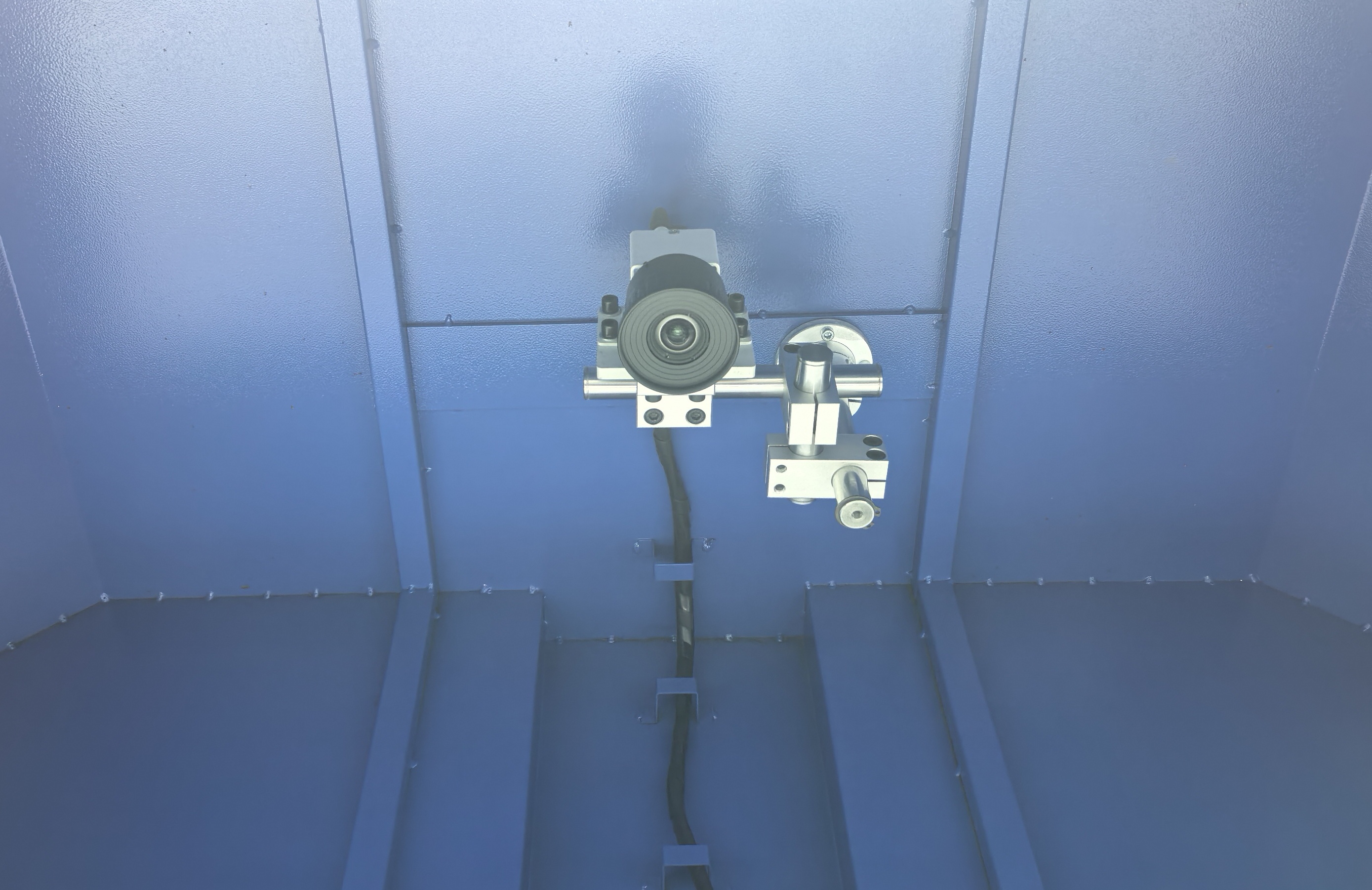

Powerful AI Scanning System

Coupling Distribution Controller

Composed of software package and hardware components. Main functions:

• Distributes processing paths to machines.

• Coordinates software processes.

• Diagnoses the working status of the entire line.

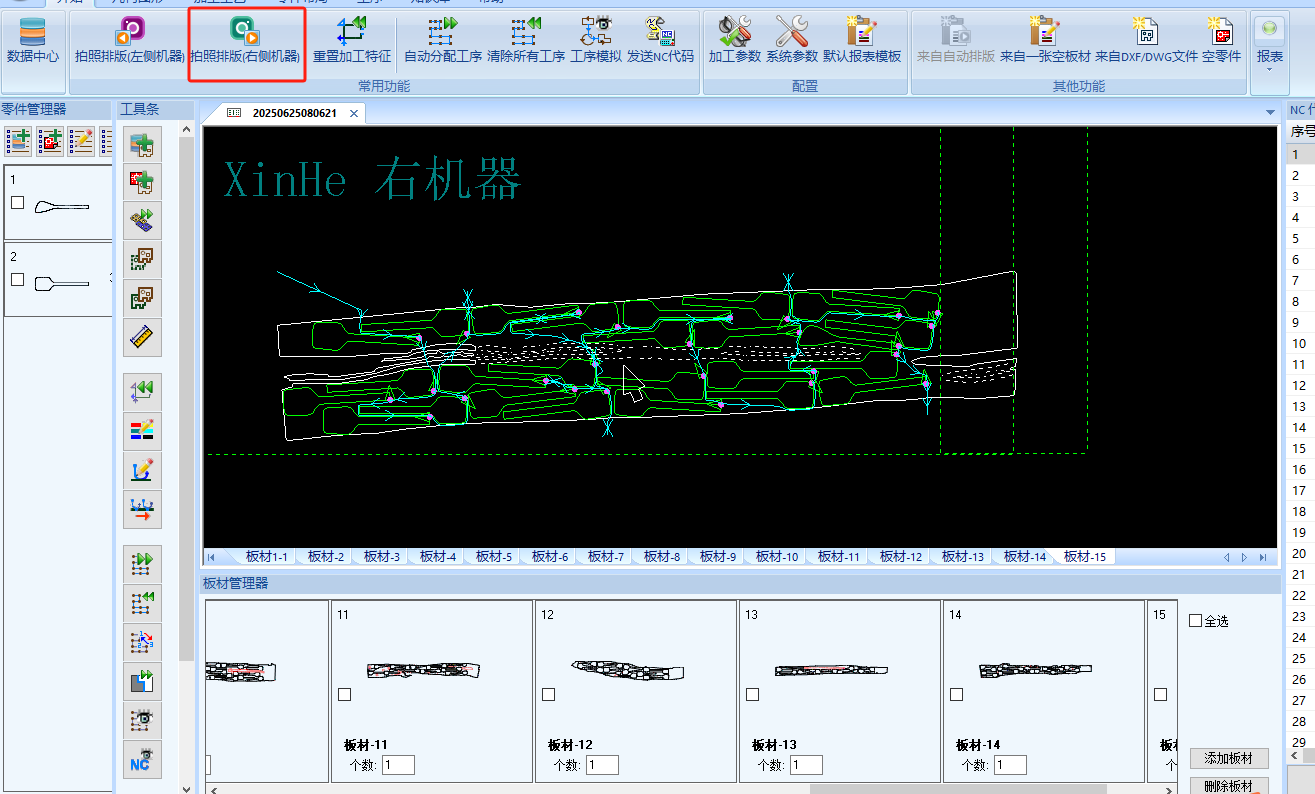

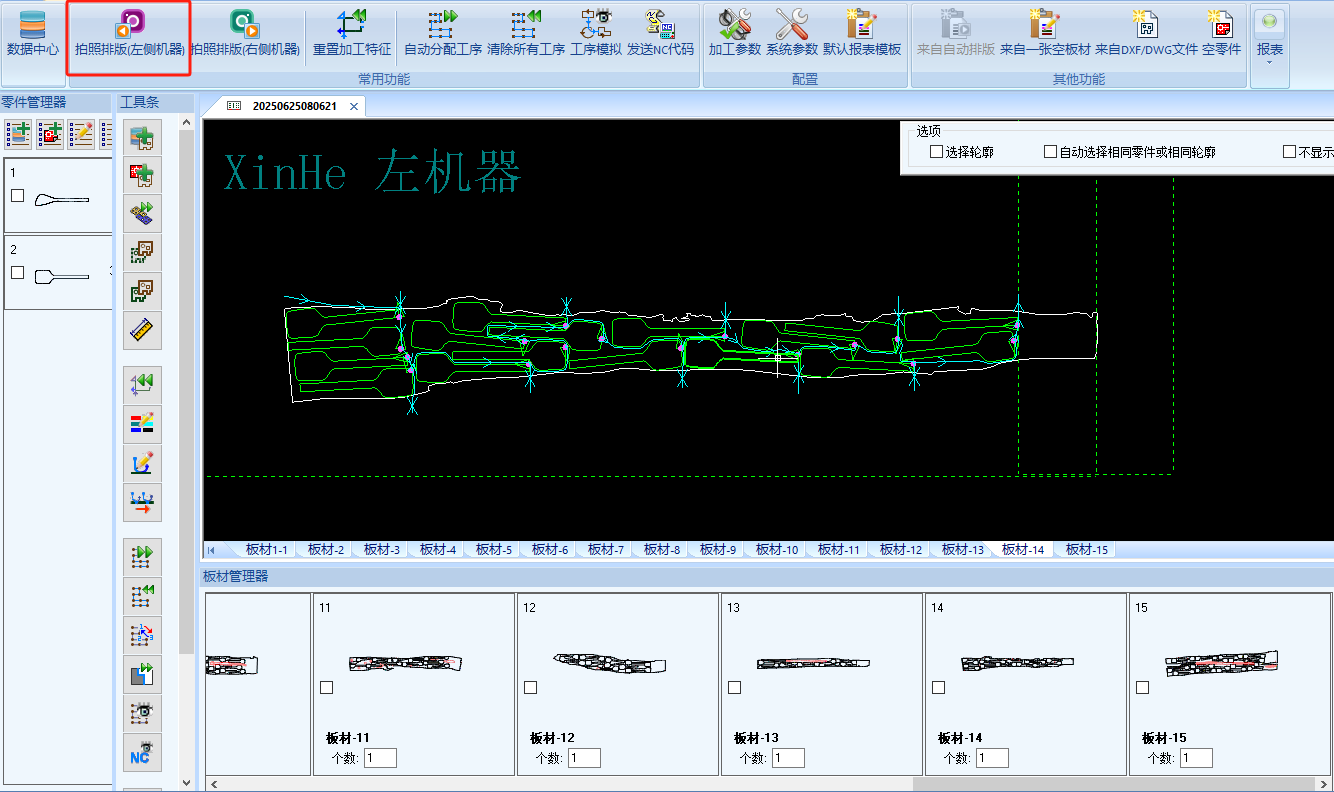

Auto Nesting Technology
